Final Presentation Film

Final Presentation

Test renderings

Physical Models

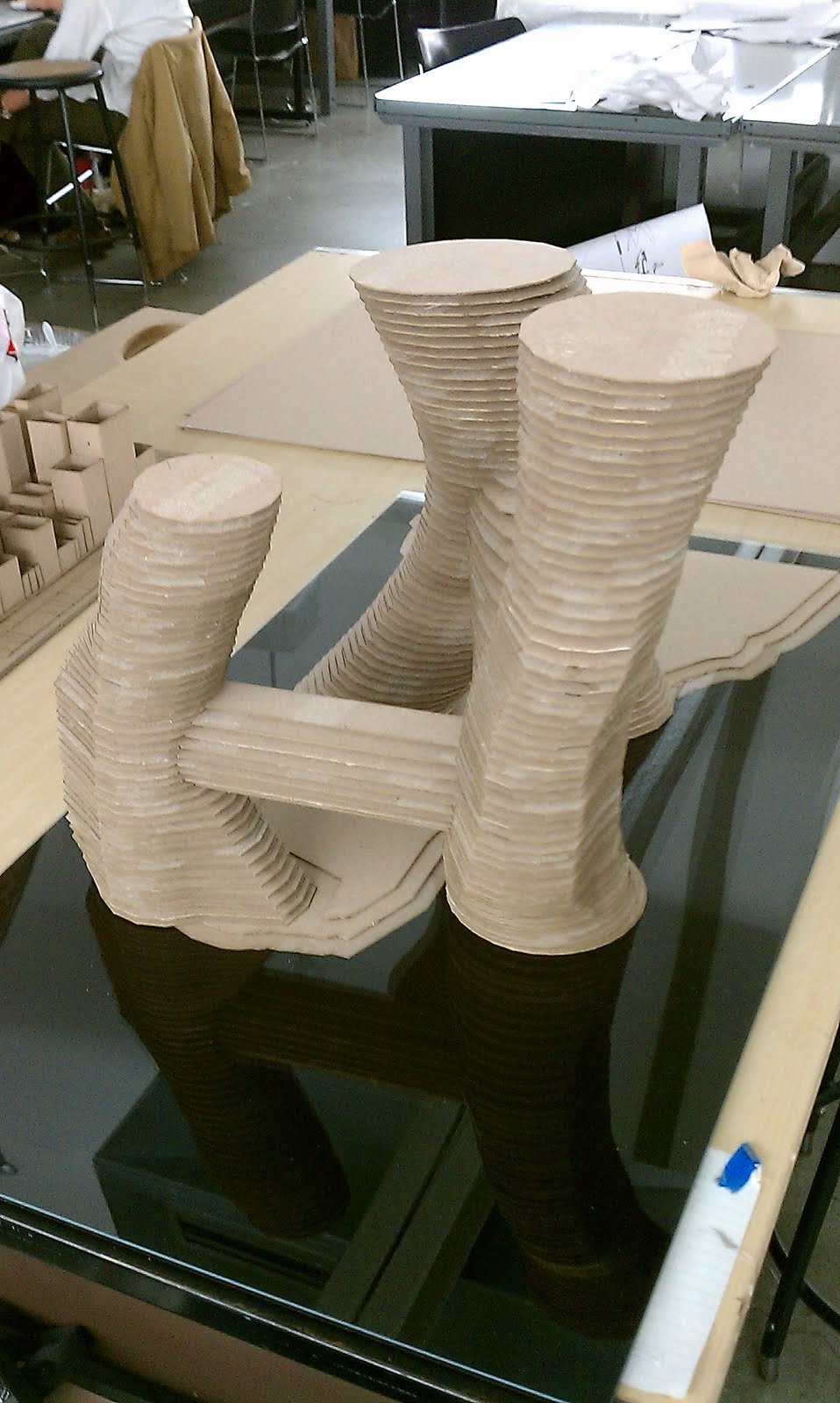

 Large scale laser cut model.

3D Printed Model

updates

Updated test renderings and sectional rendering cuts

First Run

 here are some tests runs with the outside structure/facade and the "horizontal urban plane"
Using programs, Rhino, Grasshopper, Maya, 3D Max, and AutoCAD

Facades Concept

Techniques used;
http://www.youtube.com/watch?v=P-Xh0F4L2kc&feature=fvwrel

Some ideas to design my facade. What do you think?

Post Mid-Term Review thoughts

Here are some thoughts and ideas that were mentioned during the review last week. First off I had a lack of horizontal urban plane and I was told to look at the Horizontal Skyscraper by Steven Holl. (which are the last two slides 2006-2009). The first three slides are images of a project I did in 2005 when I was in my 4th yr Undergrad studio. The project was for the CCNY dormitory on the South campus. It is interesting how both projects and designs are very similar and many ways. Such as the concepts of views, and building above something whether a garden or water.

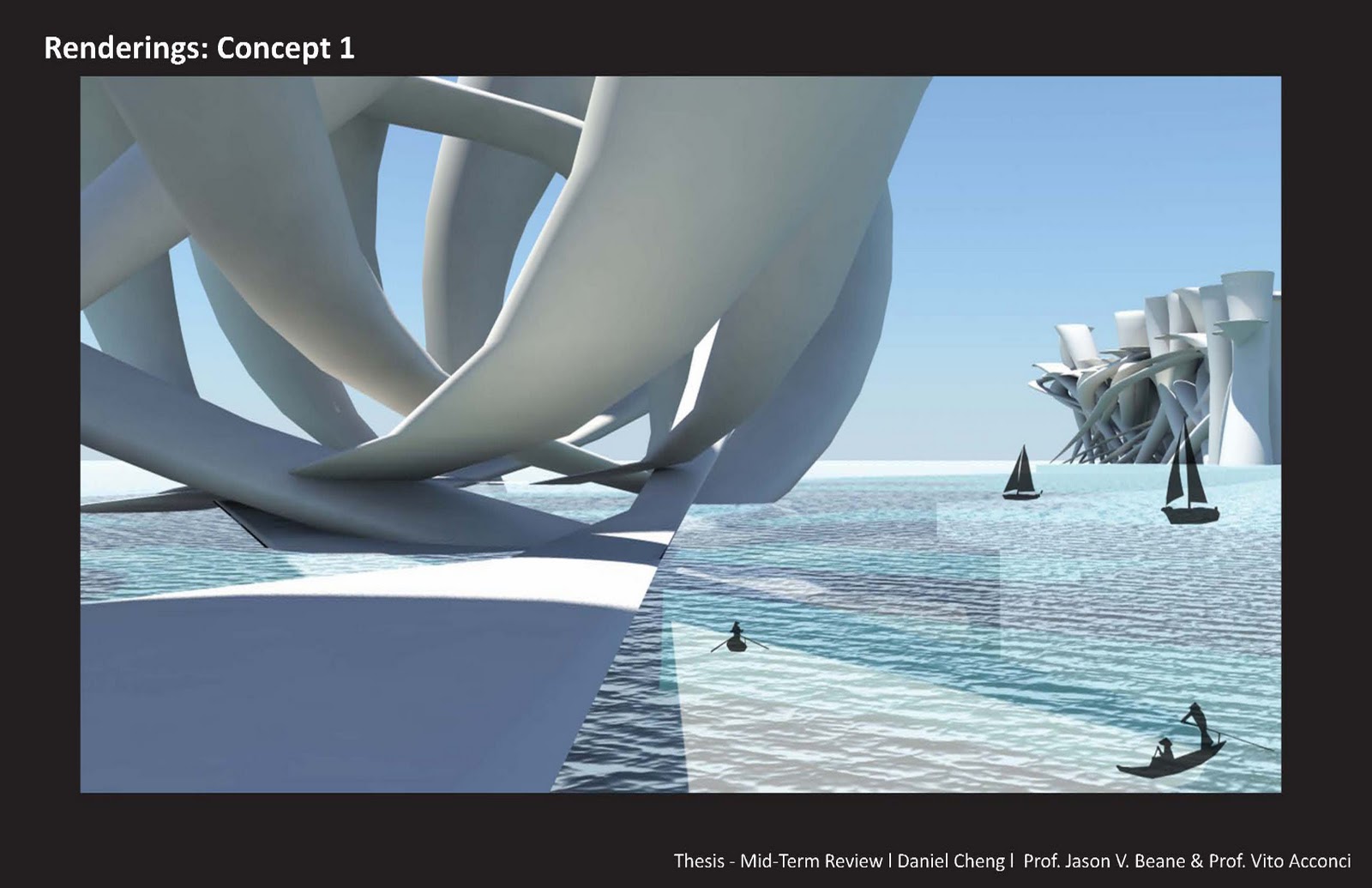

Mid-Term Presentation
